M5stickVで子供を自動撮影した話。

import lcd

import image

import time

import uos

lcd.init()

lcd.rotation(2) #Rotate the lcd 180deg

try:

    img = image.Image("/flash/startup.jpg")

    lcd.display(img)

except:

    lcd.draw_string(lcd.width()//2-100,lcd.height()//2-4, "Error: Cannot find start.jpg", lcd.WHITE, lcd.RED)

from Maix import I2S, GPIO

import audio

from Maix import GPIO

from fpioa_manager import *

fm.register(board_info.SPK_SD, fm.fpioa.GPIO0)

spk_sd=GPIO(GPIO.GPIO0, GPIO.OUT)

spk_sd.value(1) #Enable the SPK output

fm.register(board_info.SPK_DIN,fm.fpioa.I2S0_OUT_D1)

fm.register(board_info.SPK_BCLK,fm.fpioa.I2S0_SCLK)

fm.register(board_info.SPK_LRCLK,fm.fpioa.I2S0_WS)

wav_dev = I2S(I2S.DEVICE_0)

try:

    player = audio.Audio(path = "/flash/ding.wav")

    player.volume(100)

    wav_info = player.play_process(wav_dev)

    wav_dev.channel_config(wav_dev.CHANNEL_1, I2S.TRANSMITTER,resolution = I2S.RESOLUTION_16_BIT, align_mode = I2S.STANDARD_MODE)

    wav_dev.set_sample_rate(wav_info[1])

    while True:

        ret = player.play()

        if ret == None:

            break

        elif ret==0:

            break

    player.finish()

except:

    pass

fm.register(board_info.BUTTON_A, fm.fpioa.GPIO1)

but_a=GPIO(GPIO.GPIO1, GPIO.IN, GPIO.PULL_UP) #PULL_UP is required here!

if but_a.value() == 0: #If dont want to run the demo

    sys.exit()

fm.register(board_info.BUTTON_B, fm.fpioa.GPIO2)

but_b = GPIO(GPIO.GPIO2, GPIO.IN, GPIO.PULL_UP) #PULL_UP is required here!

fm.register(board_info.LED_W, fm.fpioa.GPIO3)

led_w = GPIO(GPIO.GPIO3, GPIO.OUT)

led_w.value(1) #RGBW LEDs are Active Low

fm.register(board_info.LED_R, fm.fpioa.GPIO4)

led_r = GPIO(GPIO.GPIO4, GPIO.OUT)

led_r.value(1) #RGBW LEDs are Active Low

fm.register(board_info.LED_G, fm.fpioa.GPIO5)

led_g = GPIO(GPIO.GPIO5, GPIO.OUT)

led_g.value(1) #RGBW LEDs are Active Low

fm.register(board_info.LED_B, fm.fpioa.GPIO6)

led_b = GPIO(GPIO.GPIO6, GPIO.OUT)

led_b.value(1) #RGBW LEDs are Active Low

time.sleep(0.5) # Delay for few seconds to see the start-up screen :p

import sensor

import KPU as kpu

err_counter = 0

while 1:

    try:

        sensor.reset() #Reset sensor may failed, let's try some times

        break

    except:

        err_counter = err_counter + 1

        if err_counter == 20:

            lcd.draw_string(lcd.width()//2-100,lcd.height()//2-4, "Error: Sensor Init Failed", lcd.WHITE, lcd.RED)

        time.sleep(0.1)

        continue

sensor.set_pixformat(sensor.RGB565)

sensor.set_framesize(sensor.QVGA) #QVGA=320x240

sensor.run(1)

task = kpu.load(0x300000) # Load Model File from Flash

anchor = (1.889, 2.5245, 2.9465, 3.94056, 3.99987, 5.3658, 5.155437, 6.92275, 6.718375, 9.01025)

# Anchor data is for bbox, extracted from the training sets.

kpu.init_yolo2(task, 0.5, 0.3, 5, anchor)

but_stu = 1

import os

j=0

try:

    while(True):

        img = sensor.snapshot() # Take an image from sensor

        bbox = kpu.run_yolo2(task, img) # Run the detection routine

        if bbox:

            for i in bbox:

                j = j+1

                print(j)

                img.draw_rectangle(i.rect())

                led_w.value(0)

                #filename = "/sd/{i}.jpg".format(i)

                #img.save(filename)

                img.save("/sd/" + str(j)  + ".jpg", quality=95)



                #lcd.draw_string(10,20,filename)

                time.sleep(1)

                led_w.value(1)

        lcd.display(img)

        if but_a.value() == 0 and but_stu == 1:

            if led_w.value() == 1:

                led_w.value(0)

            else:

                led_w.value(1)

            but_stu = 0

        if but_a.value() == 1 and but_stu == 0:

            but_stu = 1



except KeyboardInterrupt:

    a = kpu.deinit(task)

    sys.exit()

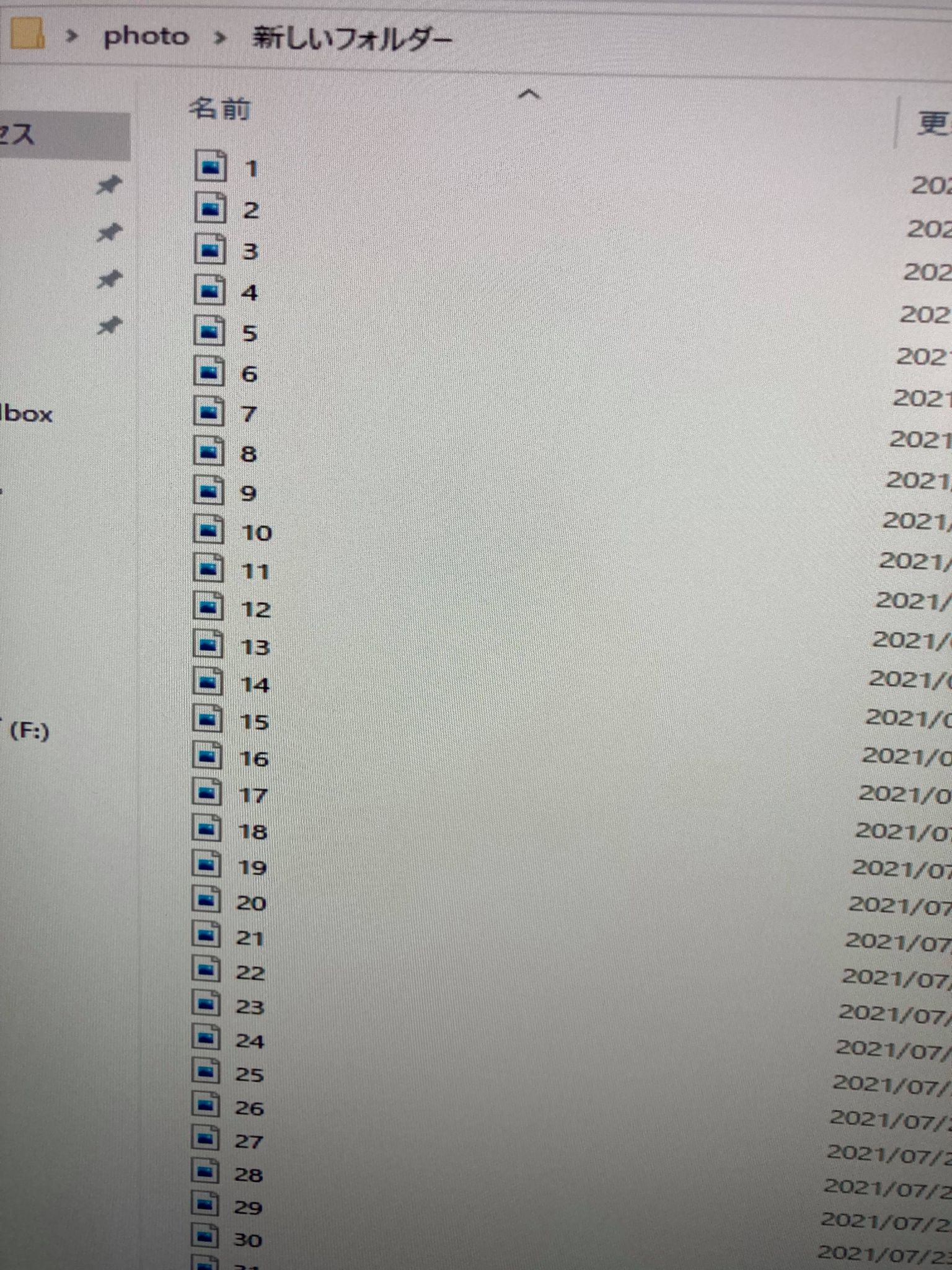

するとこんな感じで連番の写真がマイクロSDに保存されます。

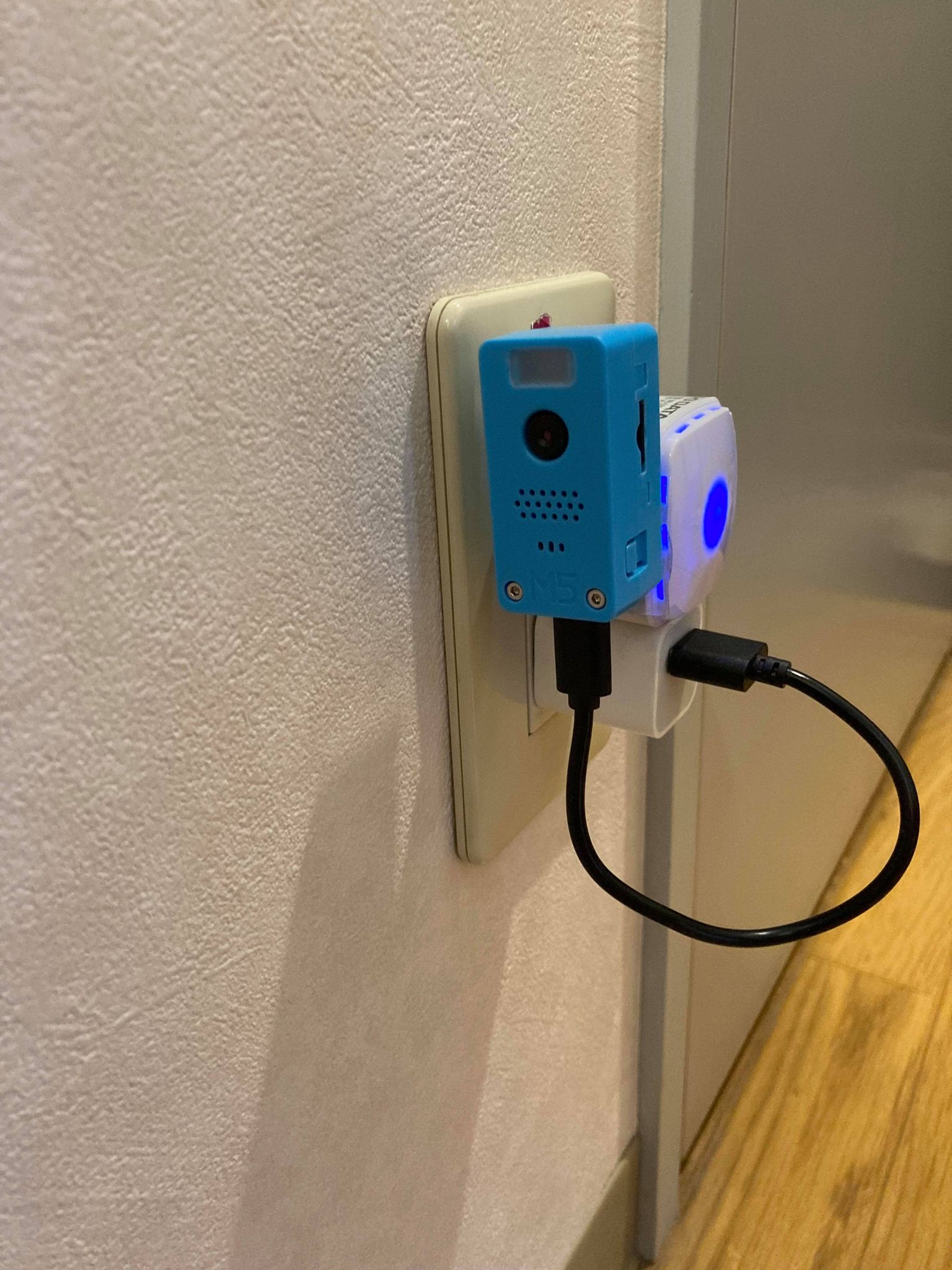

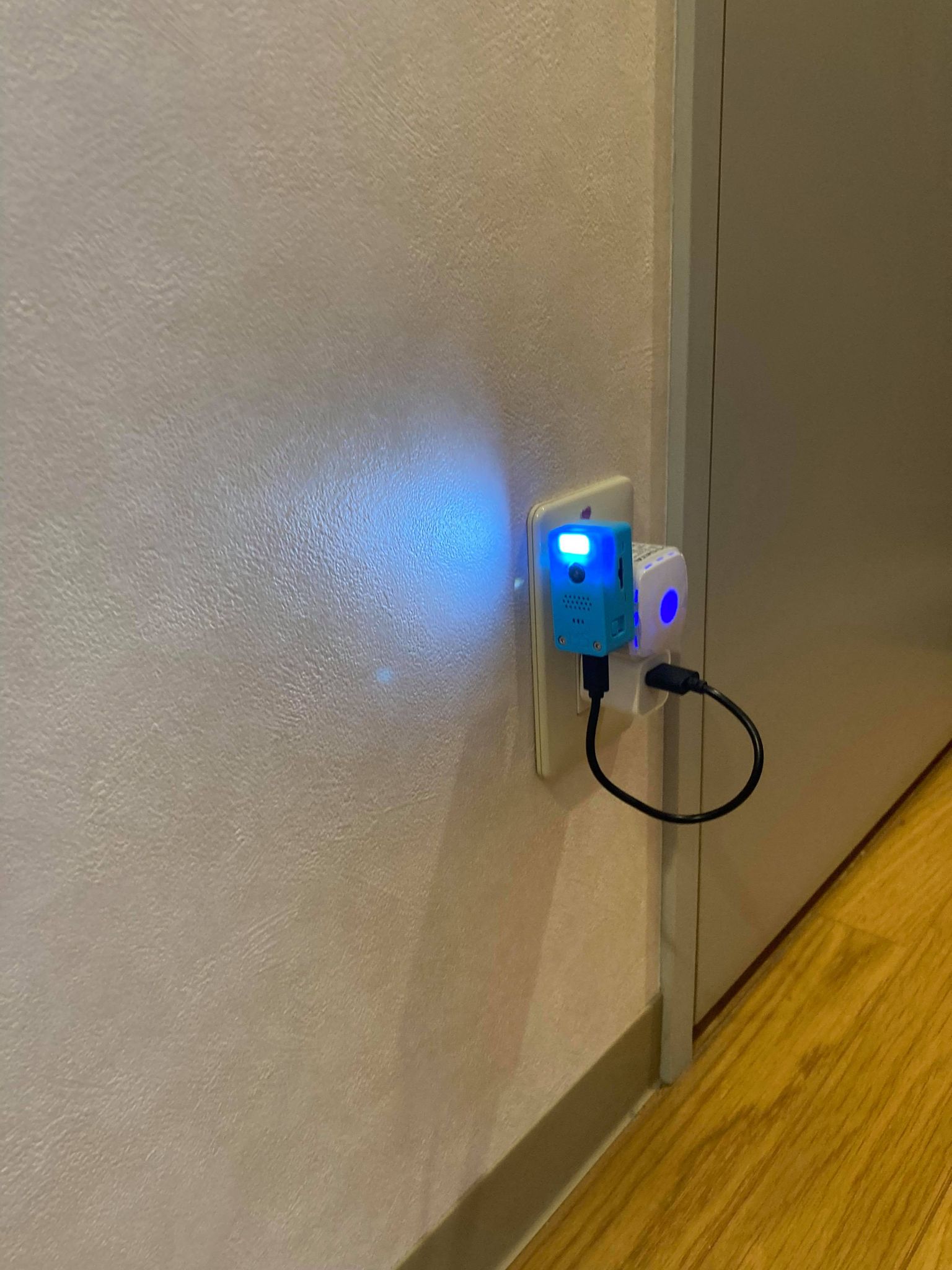

これで息子が自動で撮影できました。簡易の監視装置ですね。

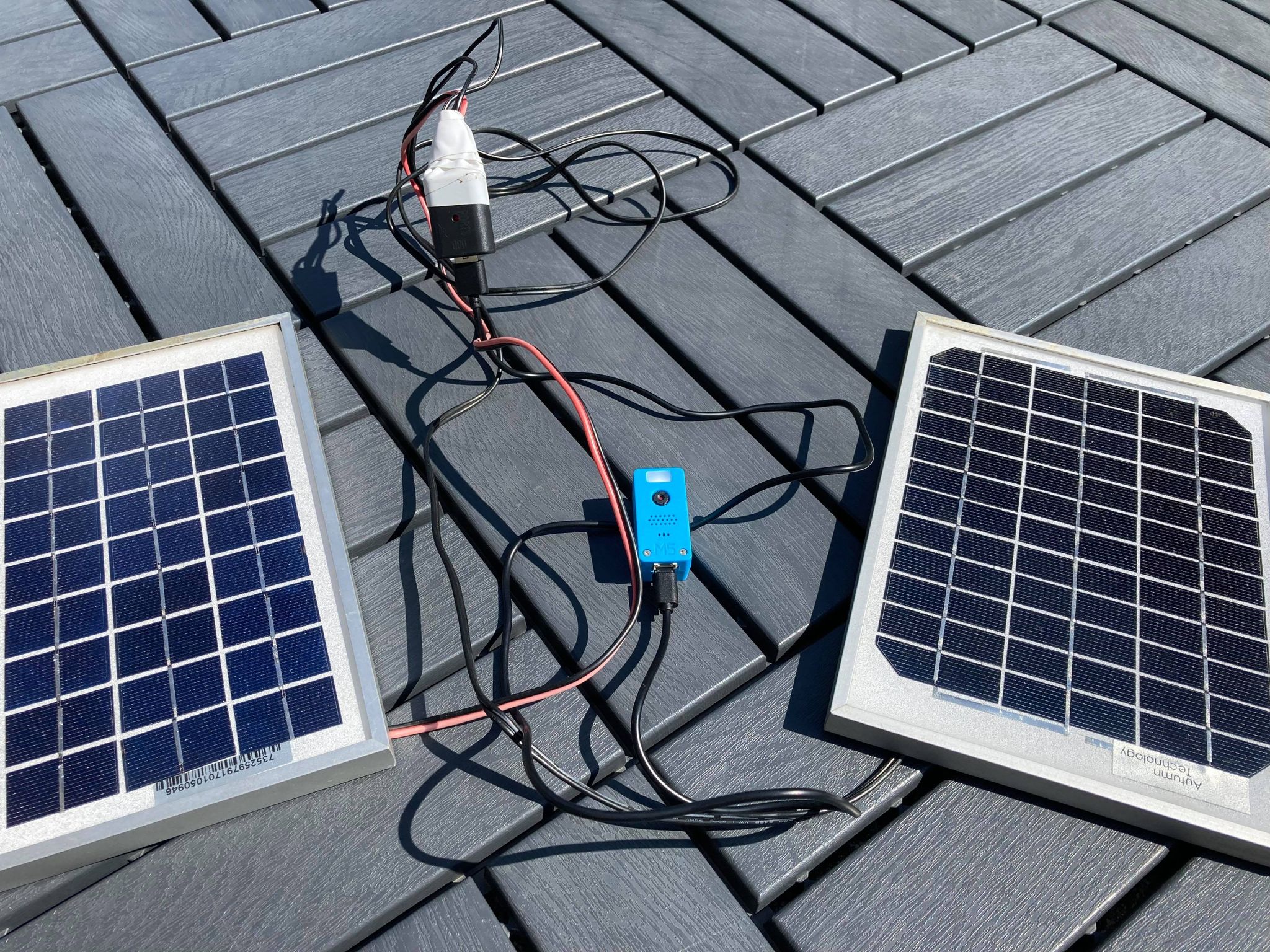

ちなみに５Wのソーラーパネル２枚でDCDC変換器で動かすことができました。
屋外でも日中だったら撮影できますね！　

M5stack UNITV２が出て下火になってきたM5stickVですが、まだまだ遊べそうです！！
